BLDC stator winding machine Introduction:
The brushless motor stator coil winding machine is suitable for the winding of the stator of the servo motor, the BLDC stator winder adopts the needle inner winding design, single-station operation, and can simultaneously wind three slots at the same time in the winding, and the whole coil winding process is automated and efficient. , safe, multi-strand winding at the same time, the coil winding speed can reach up to 1100 rpm, and different types of brushless stators can be wound according to customer requirements. This BLDC stator needle winder has self-diagnosis function.
BLDC stator winding machine Specification:
|
Product name : |
Servo motor BLDC stator coil winding machine |
|
Wire dia.: |
0.15-0.7mm(can be customized) |
|
BLDC Stator ID: |
10-50mm |
|
BLDC Stator OD: |
30-80mm |
|
BLCD Stator Stack- length: |
5-60mm |
|
Winding speed: |
50-1100 r/min |
|
Winding method: |
three needle winding |
|
Winding station : |
one |
|
Aire pressure: |
0.5MPa~0.7 MPa |
|
Power: |
380V/50HZ, three phase four wires |
|
Total power: |
8.5 KW |
|
Weight : |
about 350 Kg |
|
Dimension: |
700*900*1650mm |

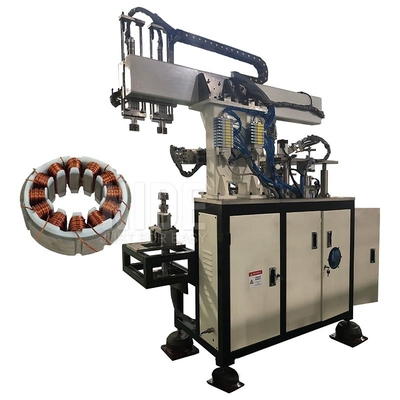

Servo motor BLDC needle winding machine Picture display
The BLDC Sstator winding machine winding process 1
The BLDC Sstator winding machine winding process 2
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
