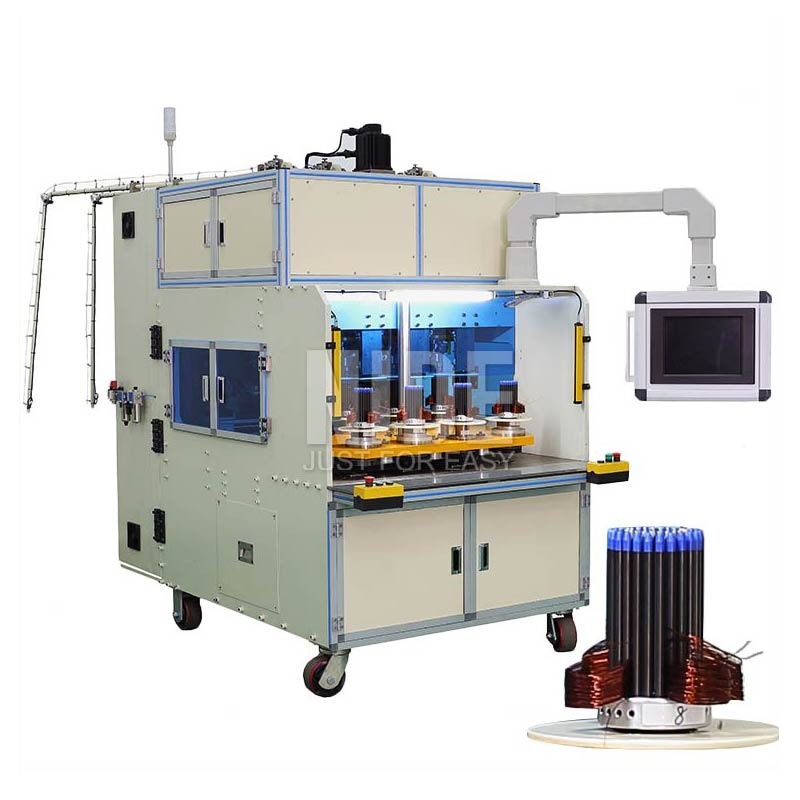

Automatic motor stator coil winding machine
Equipped with four winding heads and eight operation stations, this motor stator coil winding machine is of high efficiency and automation; it is especially suitable for high production capacity requirement. The coil winding machine automatically put the coil into the transfer former orderly.Winding mode such as auto skip,auto cutting and auto indexing could be completed at a time successively; All winding parameter could be set in touch screen interface, It meets the 2 poles, 4 poles and 6 poles coils winding and other high slot filling rate,small slot opening stator coil winding.
Specification:
| Model no. | RXL3-100 |
| Wire diameter | 0.19-1.2mm |
| Swing diameter | 220mm |
| Operation station | 8 |
| Winding head | 4 |
| Max Thickness of stator lamination | 100 mm |
| Max Stator ID | 160mm |
| Max RPM | 2500rpm |
| Air source | 0.4mpa |
| Power supply | 380V- 50/60HZ |
Automatic motor stator coil winding machine working process
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
