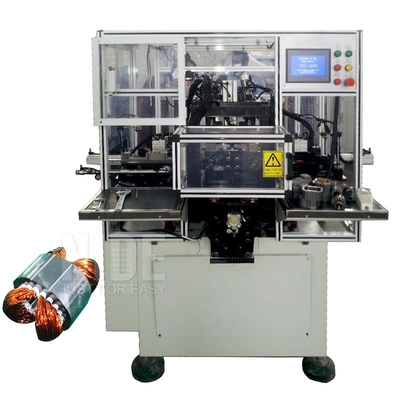

Automatic Elecric Motor 2 Poles Stator Winding Machine Electric Motor Winding Machine For Universal Motor

2 poles stator coil winding machine automatic electric motor winding machine for universal motor

(1) Main technical data:

(2)Application:

This motor stator automatic coil winding machine is suitable for two poles stator,such as universal motor,series motor.

(3) Machine Function and characteristic:

1. The motor winding machine has two working stations.

2.The maximum winding speed is up to 450rpm (according to the wire diameter).

3.Cast iron or steel frame can absorb the shock. Accuracy is stable.

4. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

5. Fixtures are in cycle operation automatically. It is benefit for the on-line operation.

6. The cutting part structure is in compact. Wire clamping and cutting is finished at the same time.

7. Travel and swing angle is adjusted within 150-220mm (mechanical adjustment) .It could adapt to different requirement of different stator models.

8. Easily to change the fixture for different types of stators.

9.Permanent magnet tensioning device enables the tension adjustment.

(4)The automatic motor stator winding machine picture show

1.Two coil winding stations of the automatic motor stator winding machine

2.Left and right sides protective panel of the motor winding machine display

3.2-pole motor stator after automatic coil winding

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
