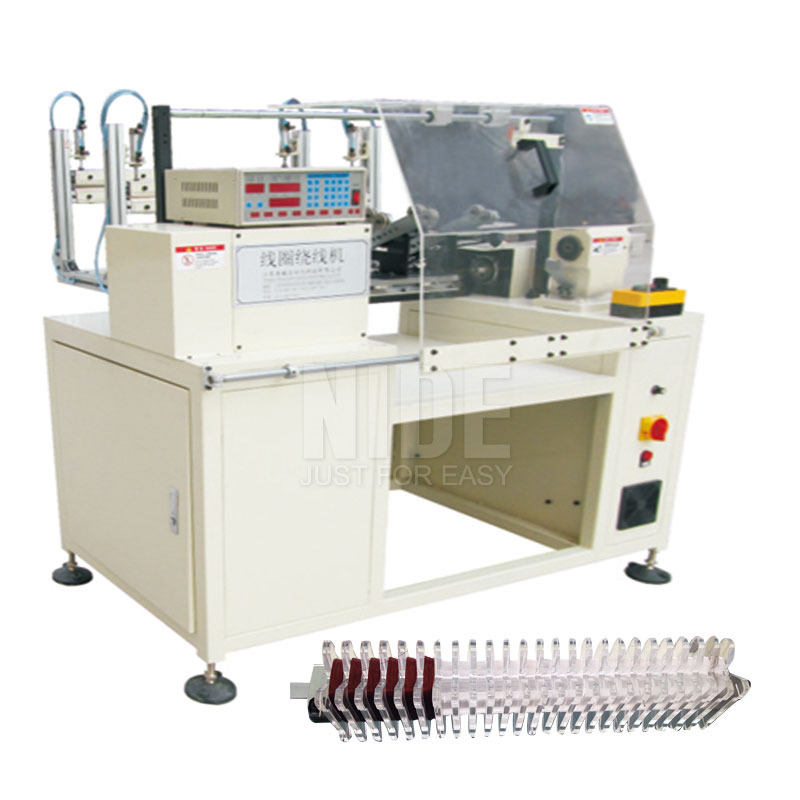

Automatic transformer coil winding machine
(1) Main Technical parameter:
Swing diameter: ≤550mm
Effective length of tooling: ≤400mm
Wire head: 1pc
Max stack height: 300mm
Max stator OD: 210mm
Max RPM: 500RPM
Power supply: 220V/50/60Hz 2.2Kw
Air pressure: 0.4MPa
Weight: 300Kg
Dimension: 1360mm(L)*1300mm(W)*1280mm(H)
(2) Machine function and characteristic
This coil winding machine is suitable for multi-connected and multi layer winding. It adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect. There are twp alternate spindles to facilitate higer output.
(3)Information needed for Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
transformer coil winding machine / fully automatic transformer coil winding machine / coil winding machine price in india /
Coil winding machine working process
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
