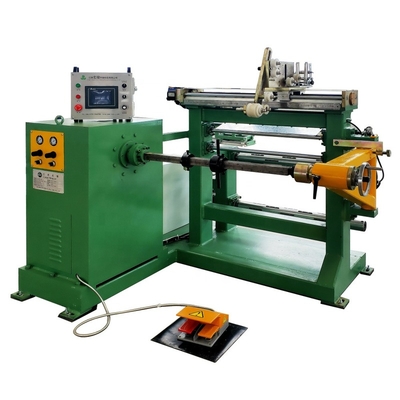

Retail High Quality Automatic Transformer Winding Machine Coil Width 600 Mm HV Winding Machine ZBR-600

1 Set
MOQ
$16,000.00(>=1 Sets)
Price
Retail High Quality Automatic Transformer Winding Machine Coil Width 600 Mm HV Winding Machine ZBR-600
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Load (KG): 2500 KG
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Gear
Coil Type: Rectangular/Oval/Round
Length Of Axis (mm): 650 Mm
Center Height (mm): 850 Mm
Max.Transformer Capacity(kVA): 380 KVA
CNC Or Not: CNC
Motor Power (kw): 4
Weight (KG): 2100
Dimension(L*W*H): Custom
Wire Diameter Range (mm): 0.2 - 3 Mm
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Retail, Machinery Repair Shops, Manufacturing Plant
Showroom Location: None
Product Name: Automatic Wire Machine
Model: ZBR-600
Coil Width: 600 Mm
Central Height: 850 Mm
Round Wire Spec: 0.2~3 Mm
Flat Wire Spec: 5X12 Mm
Winding Power: 4 KW
Winding Speed: 240 RPM
Delivery Time: In 50 Working Days
MOQ: 1 Set
Basic Infomation
Model Number: ZBR-600
Payment & Shipping Terms
Packaging Details: Standard Export Package.
Supply Ability: 200 Set/Sets per Year
Product Description
Production Description
1. Application：
ZBR-600 Automatically coil winding machine is suitable for small and medium-sized high voltage immersed distribution transformer power from 10KV to 500KV,especially for oval and amorphous alloy rectangular core enamel-covered Aluminum and Copper coil winding (wire diameter range:Φ0.8-Φ3.5)

2.Main Features：
1.About the winding speed ，the speed is set with low speed as winding the first turn ,so that we can rectify the foil winding position .
2.The foot switch controls automatic control, the touch screen interface can choose to set the automatic/jog foot pedal, when the touch screen selects the automatic control, when the device is started, the device will automatically run to the set number of turns for each layer. Ascend the layer, it will stop automatically when the set number of turns is reached, prompting the artificial person to come up.

3.The Main compositions:
It is made up with six parts:Winding frame,winding mold, ,wire laying device ,layer insulation feeding device,round wire tension lay-off racks ,and electric motor.

1
Center for high
850 mm
2
The widest stroke of the line
600 mm
3
Maximum working moment
max 800 N/M
4
Dimensions of wound spool
40×40×750
5
Working speed (mechanical double speed)
0-240 r/min
0—400 r/min
6
Speed way
Stepless frequency control
Outer diameter≤700mm
7
Applicable scope of workpiece
The inner diameter ≥80mm
The axial high≤600mm
8
Workpiece weight (coil)：
Max：≤200kg
9
Number of layer insulation
2Set of
10
Applicable workpiece specification
Paper roll diameter:≤ 400mm
Inside diameter of paper roll 76mm
The paper roll width≤600mm
The thickness of the：0.08-0.5mm
Maximum tension of layer insulation
≤50Nm
11
Main motor power
5.5 kw
12
Count range
99999
13
Flat wire:
Max 5×12 mm
Wire specifications
ΦΦ0.2mm×Φ3.5mm
14
Minimum adjustment wire diameter
0.01mm
15
Line spacing setting range
0-15mm
16
Adjustment of line gauge for flat line row wheel
0-15mm
17
The row wheel adjusts the distance vertically
0-300mm
18
Main shaft supports jacking device
Rotatable tripod structure
19
Flat wire material frame tension supply
electric
20
Axis diameter of reel
Φ36mmΦ30mm
21
Number of shaft
1 the root
Outer diameter
MaxØ750mm
22
The width of the
150-300mm
22.1
The weight of the
200KG
23
Material frame moving form
Main shaft line linkage movement
24
Winding way
Straight and backwards
25
Maximum tension of flat wire
50N
26
The weight
about 2100kg
If you want to know more, please contact us immediately! We will give you more detailed product information you need.
