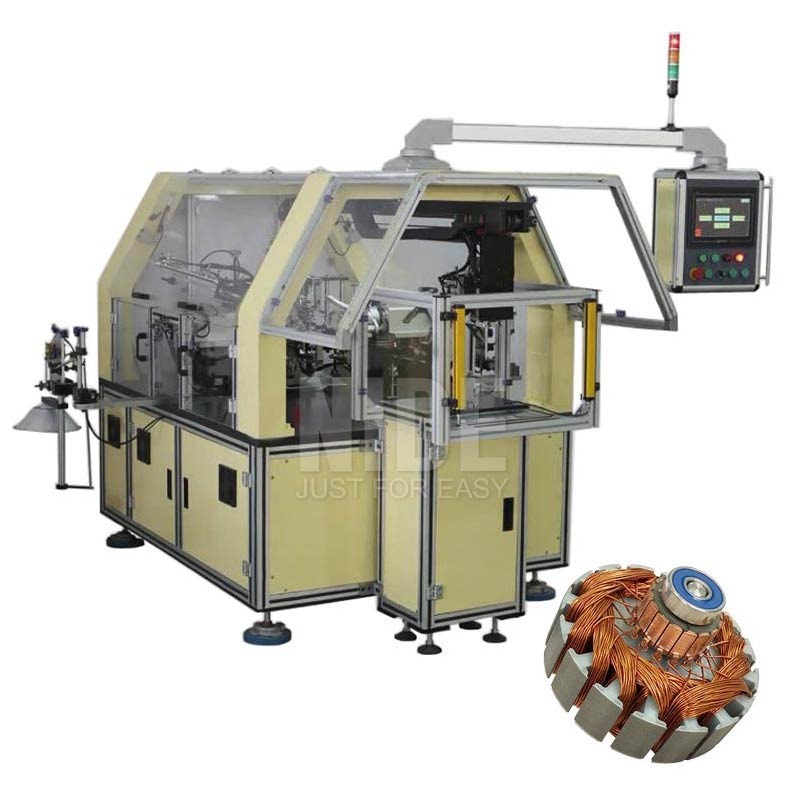

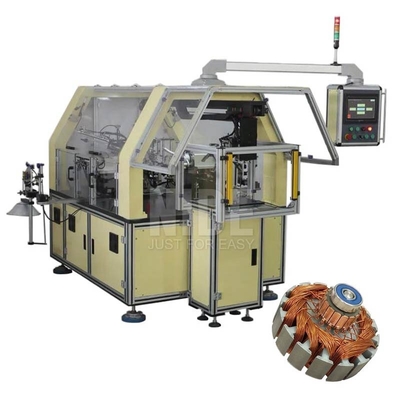

Fully Automatic Armature Rotor Winding Machine is suitable for hook type commutator. This rotor winding machine will do all the winding process automatically, inculding loading, unloading, winding, indexing, wire cutting and etc. It is equipped with mechanical arm. This armature coil winding machine is of high automation.
Main configurations of this rotor winding machine
|
PLC |
Omron |
|
Interface module |
Omron |
|
Conversion module |
Omron |
|
Winding indexing servo motor750Wx1 axis |
Omron |
|
Winding fliers servo motor 1500Wx2 axis |
Omron |
|
Welding indexing servo motor 750Wx1 axis |
Omron |
|
5C mechanical arm servo motor 750Wx1 |
Omron |
|
Display |
10.4 Wenview |
|
DC inverter welding power IS120B |
Miyaji |
|
Inverter transformer TDC-5543(40KW) |
Roma |
|
Industrial water chiller ICA-1 |
Kansa |
|
Air switch |
Mitsubishi |
|
Indicator and button |
Schneider |
|
Relay |
Omron |
|
Sliding bearing |
Misumi |
|
Linear bearing |
Misumi |
|
Linear transmission slideway |
ABBA |
|
Winding flier |
Die-casting aluminium alloy, biaxial dynamic balance calibration |
|
Winding tools |
Cr12MoV quenching HRC62 |
|
Tensioner 10YN |
Mitsubishi electric magnetic powder brake |
|
Welding indexing chuck |
SMC |
|
Pneumatic treatment component |
SMC |
|
Electromagnetic valve |
SMC |
|
Cyliner |
Airtac/SMC |
|
Buffer |
Airtac/CKD/SMC |
Rotor winding machine working process
Motor armature rotor manufacturing assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
| Contact Person : | Li |
|---|
