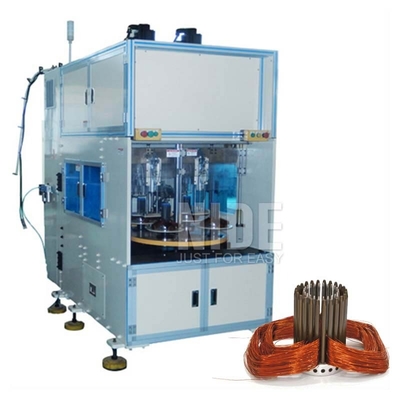

Auto stator flyer coil wire winding machines for table fan motor
The induction motor stator coil winding machine is equipped with 8 working station and 4 winding heads. Machine is suitable for stators with high slot filling rate, small slot opening or high production capacity requirement. During machine running, after start button is pressed, this coil winding machine will automatically put the coil into the transfer former orderly.
(1)Technical data
| Product name | table fan stator flyer coil wire winding machine |
| Wire diameter: | 0.19-1.2mm |
| Swing diameter: | 400mm |
| Operation station: | 8 |
| Winding head: | 4 |
| Max Thickness of stator lamination: | 120mm |
| Max Stator OD: | 150mm |
| Max RPM: | 2500rpm |
| Air source: | ≥0.5MPa |
| Power supply: | 380V- 50/60HZ |
| Weight: | about 5000kg |
| Dimension: | L2100*W1350*2200mm |
(2) Application
This motor winding machine is suitable for 2 poles. 4 poles, 6 poles coils winding.
(3) Operator step
1.Power on the machine
2.Thread wire this this motor
3. Set the winding parameter in the touch screen
4. Press the "start" button
5. Machine will do winding process automatically
6.After finishing the winding, machine will stop
7.Take out the wire from the tooling.
provide our customers with full package of optimized solution to motor manufacturing.
All the machine will leave factory only after passing quality control.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
