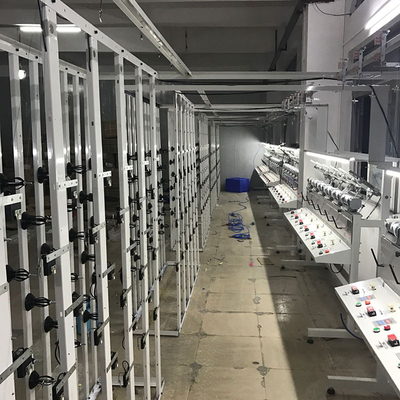

GH018-E Multi-Ply Yarn winding machine adopts the electrical control system and modular design with high and new technology integration. The performance is superior, more stable, more reliable and higher speed. Can be used in cotton, wool, silk, linen and blended yarn, 2-12 ply yarns together. It can be used not only for doubling and twisting machines, but also for making shuttle less looms for weft yarn. (This machine can be equipped with network nozzle)
Main characteristics:
1.The electrical system is highly integrated with central computer control.
2.Modular design, single spindle motor, single spindle control, easy installation and operation.
3. Electronic fixed length, single ingot meter length, full stop, single ingot clear, data memory.
4.No tail yarn photoelectric sense wire, will not be influenced by the variety, count, temperature.
5.Variable frequency speed regulation, the highest speed of up to 500 meters / min.
6.The yarn passage is concise and reasonable, and the yarn tension is uniform.
GH018-E Technical Parameters
|
Technical characteristics |
Technical Parameters |
|
Spindle distance |
420mm (customize) |
|
Number of spindle |
6 spindles/section |
|
Doubling yarn number |
2-4 (customize) |
|
Winding line number |
≤500m/min |
|
Way of driver |
Single spindle drive |
|
Tension control |
Tension tablet |
|
Broken-end detection |
Optronic sensor |
|
Optional devices |
Choose: pneumatic brake,10″,8″drum, import drum (line speed up to 1000m/min, electronic clearing),blowing dust device 10″,8″ |
|
Machine size |
Motor box 400mm+ spindles/2×spindle distance,wide over 2500mm creel of Yarn supply |
|
Lighting system |
Lamp |
|
Air splicer |
Ordered separately |
